Carbon fiber-reinforced plastic strips
Carbon fiber-reinforced plastic rods

Carbon fiber-reinforced plastic strips
(e-Plate)

e-Plate is a carbon fiber strip to strengthen concrete or steel structures. This strip is manufacutured by pultrusion method.
As a factory product, the quality is stable and the reinforcement effect per unit width is larger with a potentially shortened construction period compared to carbon fiber sheet attaching method (REPLARKTM).

Feature

High qualityPossible due to factory products used.
Shortening the construction periodBy cutting out the resin impregnation work done on-site, the construction period can be shortened.
Cost downOne e-Plate(HM1020) has strengthening effect same as nine layers of carbon fiber sheet(REPLARKTM MRK-M6-30)sheet, and as the number of carbon fiber sheet layers increases, the e-Plate construction method becomes more economical.

Detail

Two types of fibers are available: high-strength type and high-modulus type.

Example of Concrete Slab Reinforcement
Concrete Girder Reinforcement Example
Steel Girder Reinforcement Example

Carbon fiber-reinforced plastic rods
(LEADLINE™)

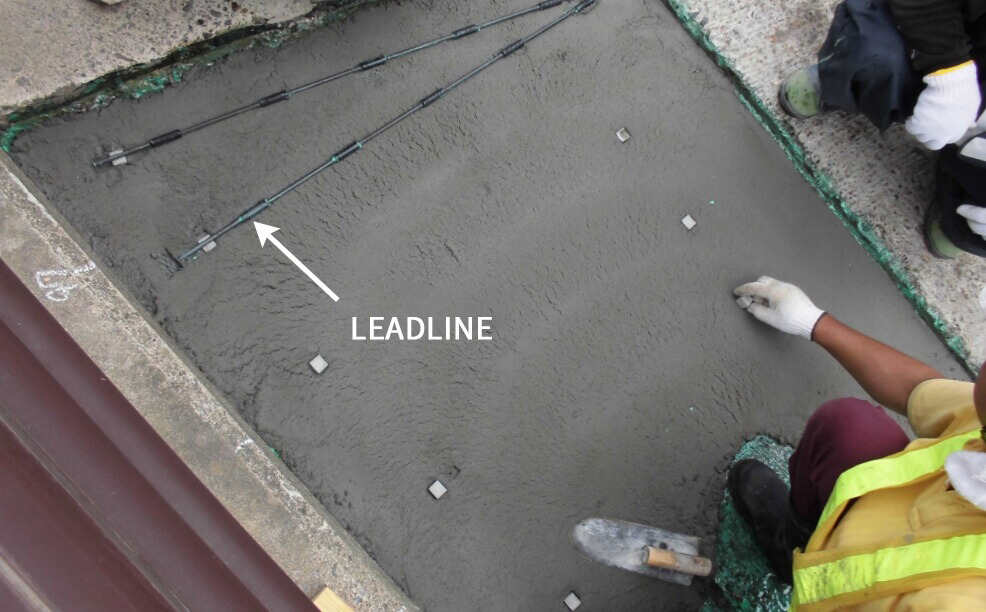

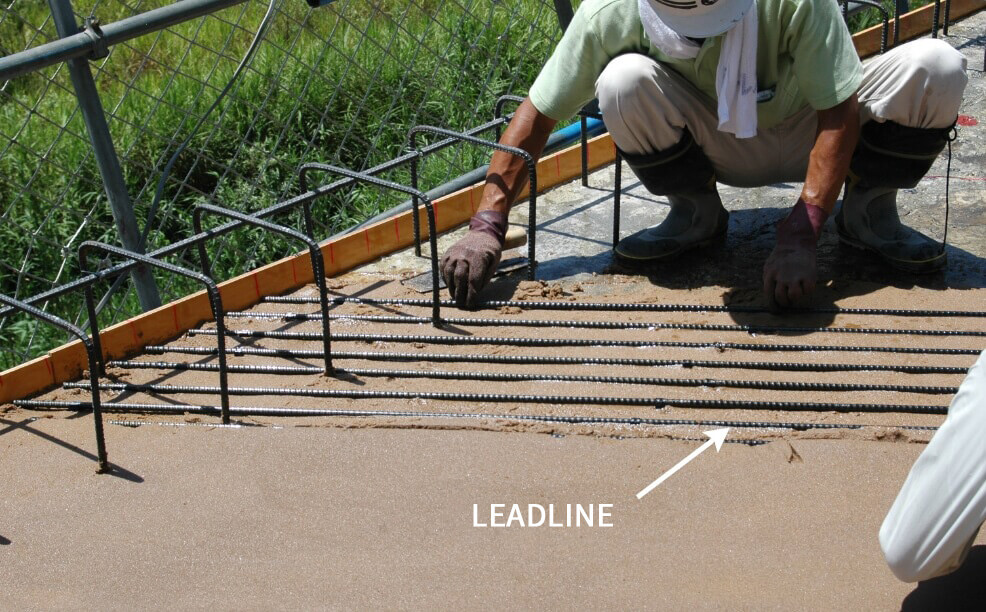

LEADLINE™ embedding is a strengthening construction method to use the carbon-fiber-reinforced plastic rods, which have been manufactured by the pultrusion method, to existing bridge deck slab.

Feature

Shortening the construction termCompared to the carbon fiber sheet used method, the number of curing times can be reduced, hence reducing the construction term.
Cost downCompared to the carbon fiber sheet used method, the construction costs can be reduced to 85-95%.
Early traffic openingIf the ultra-high-early strength mortar is used, early traffic opening is possible.
